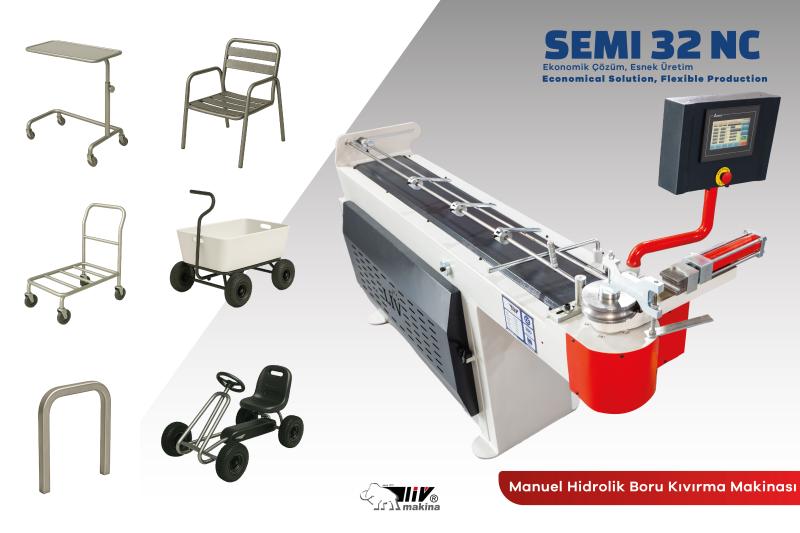

32 Nc Manuel Hydraulic Tube Bender Machine SEMI 32 NC Hydraulic Pipe Bending Machine is a pipe bending machine without reducer that can bend pipes and profiles of various sizes and thicknesses up to 32 mm in diameter and can make precise degree bending at desired angles thanks to the digital screen in accordance with the desired diameter/mould dimensions. It performs bending by providing circular motion by transferring the linear movement of the hydraulic piston connected to the other rack to the gear after clamping the pipe with the force applied to the hydraulic piston mounted on the pipe bending machine by the pump pressure connected to the 4HP electric motor of the 40 lt hydraulic oil tank. Hydraulic clamp Hydraulic bending Stable bobbin Stable mandrel Angle adjustment on digital screen Touch screen with 10 different angle system with memory (optional) Hydraulic bending system Foot pedal control Able to work with or without mandrel 1 year warranty Conforms to CE norms

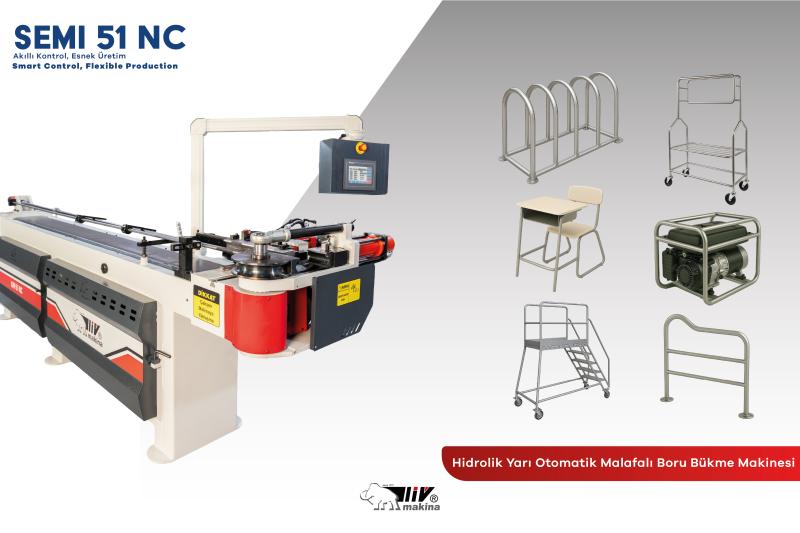

51 Nc Hydraulic Semi Automatic Mandrel Tube Bending Machine - SEMI 51 NC Our NC series pipe bending machine is equipped with an NC control unit with Touch Screen Interface. The Livmak NC series pipe bender combines practical operation, high pipe bending accuracy and cost-effectiveness. It is a practical semi-automatic solution for small and medium-sized productions. It is equipped with up to 10 programmable bending angles. Our machine, which has the ability to bend oval and ellipse pipes, serves in many sectors such as School Desks, Chairs, Stainless Pipe Profile Elevator Handles, Scaffolding Systems in many continents such as Europe, Asia and America. Hydraulic Bending System Hydraulic Clamp Hydraulic Sledge Hydraulic Mandrel PLC Electrical System Touch screen operator panel Opportunity to work with and without mandrel 1 year warranty Conforms to CE norms

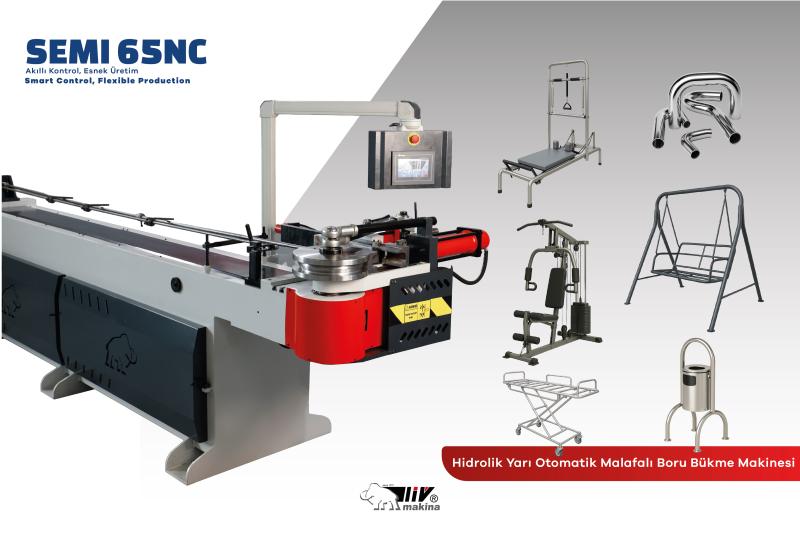

65 Nc Hydraulic Semi Automatic Mandrel Tube Bending Machine SEMI 65 NC Our NC series pipe bending machine, which includes a sphere mandrel and wiper die assembly, has an NC control unit with a Touch Screen Interface. Equipped with up to 10 programmable bending angles with memory, our machine has the ability to bend stainless pipes and is very easy to use. Livmakina: It also supports its customers in pipe bending molds. It serves many sectors such as Shipyard, Defense Industry, Fitness Sports Equipment in line with the demands of our users. It serves many European countries such as Germany, Poland, Spain, France, Ukraine and the Asian continent with references to Russia, Moldova and so on. Hydraulic Bending System Hydraulic Clamp Hydraulic Support Hydraulic Mandrel Hydraulic Slide PLC Electrical System Touch Screen Operator Panel Ability to work with or without mandrel 1 year warranty Conforms to CE Norms

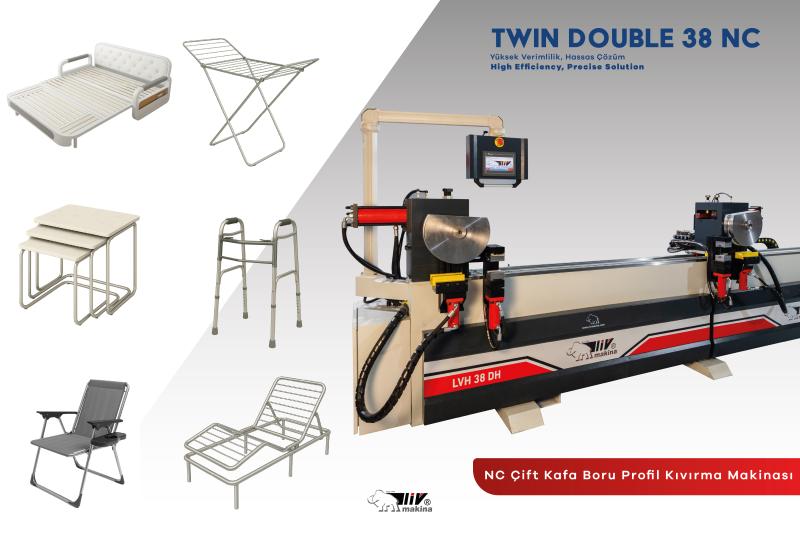

NC Double Head Tube and Profile Bending Machine (TWIN Double 38 NC) It is one of our most referenced machines used in pipe and profile bending systems that are bent on both sides, such as Police Barriers, Clothes Dryers, Bases, Sofas. In our machine with Servo Motor, measurement is done on the screen without human touch. Thanks to the memory saved in our machine with PLC system and touch screen, switching to new products is very easy. Ability to Bend at Different Angles on Right and Left Heads Multiple Language Options Conforms to CE Norms Ability to Bend 2 or 3 Pipe Profiles at the Same Time Ability to See Daily and Total Production Quantity on the Screen Mold Production According to User Needs Technical Specifications TWIN Double 38 NC Max Bending Capacity Ø38 mm x 2 mm Min / Max Mold Size 90/220 mm Material Process Length 350-2100 mm Machine Sizes 3000x1500x1500 mm Maximum Bending Angle 120° Total Engine Power 5 Hp Machine weight 1,2 Tons

CNC Double Head Tube Bending Machine (TWIN Double 38 CNC) Our machine with 2 Servo Motors has the ability to make bending at the same or different times on both heads thanks to the heads that can move independently. Thanks to this feature, you can make narrow frame bends at a time without intervention. Our machine with Automatic Distance Setting with Memory is 4 times faster than CNC Pipe Bending Machines. Double Head Independent Movement Multiple Language Options Conforms to CE Norms Ability to Bend 2 or 3 Pipes at the Same Time Ability to See Daily and Total Production Quantity on the Screen Mold Production According to User Needs Fixed Clamp Between Heads Technical Specifications TWIN Double 38 CNC Max Bending Capacity Ø38 mm x 2 mm Min / Max Mold Size 90/220 mm Material Process Length 350-4100 mm Machine Sizes 5000x1500x1500 mm Maximum Bending Angle 120° Total Engine Power 10 Hp Machine weight 1,6 Tons

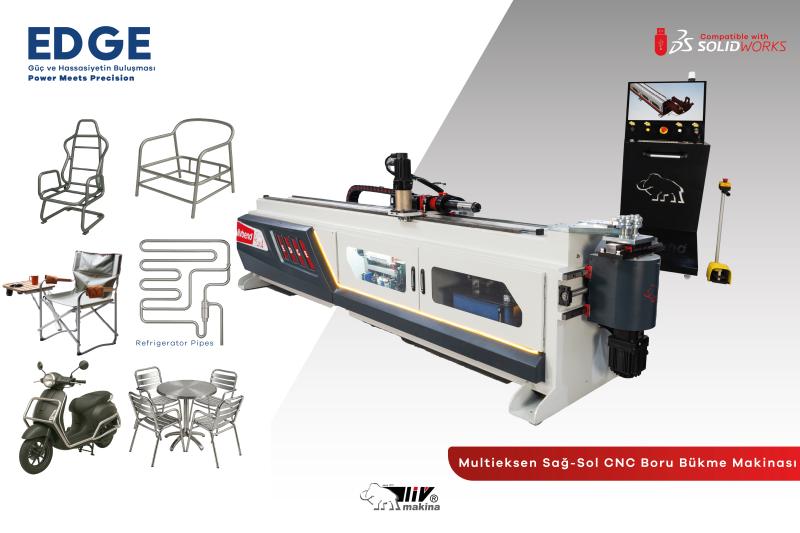

MultiAxis Right-Left Tube Bending Machine EDGE Our machine, which we produce as an economical solution for difficult jobs requiring 7 and above axes, has the feature of working without a mandrel. It eliminates the possibility of the bent pipe hitting the machine body thanks to its ability to bend in the right and left bending direction. It makes difficult bends easier for you thanks to its ability to roll in the desired direction. It is very easy to use thanks to its Solidworks compatible interface. Daily reporting is sent to you in our Industry 4.0 compatible machine. The software, which allows you to see the product on the screen before bending with the collision program, saves you time and is offered free of charge in all our CNC pipe and profile bending machines. Ability to Import Drawings to the Machine with Solidworks Program Multiple language options Ability to See the Product Program in 3D Ability to See Pipe Collision Simulation in 3D Automatic pipe length calculation Conforms to CE Norms Ability to see errors on the screen Safety warning system Easy to use thanks to Livmak Interface Technical Specifications EDGE MultiAxis CNC Max Bending Capacity Ø25 mm x 2 mm Min / Max Mold Size 90/120 mm Material Process Length 3000 mm Machine Sizes 4000x1200x1200 mm Total Engine Power 8 Hp Machine weight 1.5 Tons

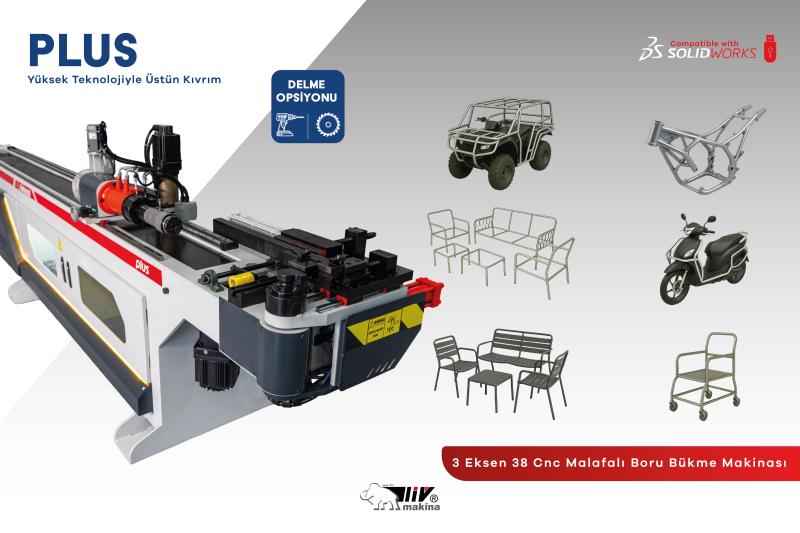

3 Axis 38 Cnc Mandrel Tube Bending Machine PLUS Livmakina s 3-axis 38 CNC mandrel 3 servo motor bending machine has all axes with servo motors. Therefore, it is ideal for prototype or daily production. Easy-to-use control thanks to Solidworks compatible program, provides easy access to manual and automatic operating modes, system diagnostics and multiple languages. Livmakina s affordable pipe bending machines and manufacturing machines are designed to produce your bending applications reliably and accurately. As a result, our machines will increase your profits and also improve product quality. Our machine, which works with 0.1 mm precision in all pipe and profile bending operations of the Hospital, Medical and Automotive sectors, offers 3D pipe collision software free of charge. Ability to import STP Drawings with Solidworks Able to use automatic or manual Multiple language option Ability to See the Product in 3D Ability to See Pipe Collision Simulation in 3D Automatic pipe length calculation Conforms to CE Norms Ability to see errors on the screen Safety warning system Easy use thanks to Livmak Interface Technical Specifications PLUS 3Axis 38 CNC Max Bending Capacity Ø38 mm x 2 mm Min / Max Mold Size 60/250 mm Material Process Length 4000 mm Machine Sizes 5000x1500x1500 mm Total Engine Power 5 Hp Machine weight 2 Tons

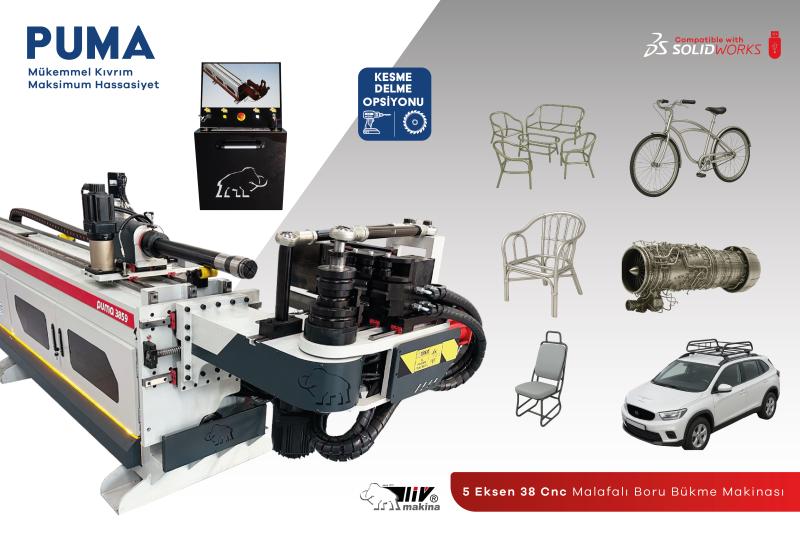

5 Axis 38 CNC MAndrel Tube Bending Machine PUMA Liv Makina s 5-axis 38 mm CNC mandrel pipe bending machine is one of the machines with the most references spread over 4 continents in the Automotive, White Goods, Defense Industry Sectors. It is very easy to use thanks to its Solidworks compatible interface. Daily reporting is sent to you in our Industry 4.0 compatible machine. It has the ability to wrap the pipe like a spring thanks to its rolling mold. It makes difficult bendings easier for you thanks to its ability to connect molds in 3 different radius. The software, which saves you time by allowing you to see the product on the screen before bending with the collision simulation program, is offered free of charge to our valued users in all our CNC pipe and profile bending machines. Ability to Import Drawings to the Machine with Solidworks Program Fully automatic and manual operation with interactive PLC control system Multiple language options Ability to See Products in 3D Ability to See Pipe Collision Simulation in 3D Automatic pipe length calculation Conforms to CE Norms Ability to see errors on the screen Safety warning system Easy to use thanks to Livmak Interface Technical Specifications PUMA 5Axis 38 CNC Max Bending Capacity Ø38 mm x 2 mm Min / Max Mold Size 60/250 mm Material Process Length 4000 mm Machine Sizes 5500x1600x1600 mm Total Engine Power 15 Hp Machine weight 2,5 Tons

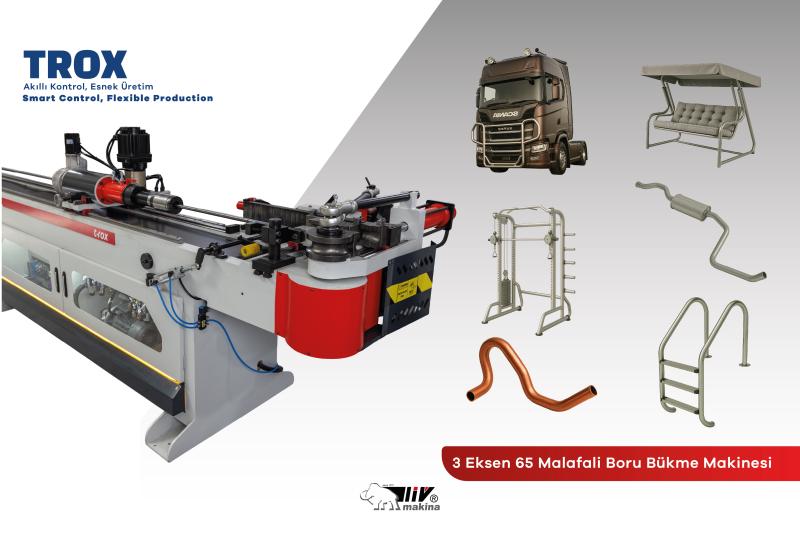

3 Axis 65 CNC Mandrel Tube Bending Machine TROX Liv Makina s most powerful machine is the CNC mandrel pipe bending machine that can bend pipes up to 65 mm with 3 axes for pipe and profile bending works of Shipyard Ship Industry, Thermal power plants, Park garden furniture, Fitness Sports equipment, Exhaust Industry, Sectors. What is difficult is easy thanks to the hydraulic bending. Ability to import drawings with Solidworks Program Fully automatic and manual mode operation with interactive PLC control system Multiple language options Ability to see products in 3D Ability to see products in 3D Pipe Collision Simulation Automatic pipe length calculation Conforms to CE Norms Ability to see errors on the screen Safety warning system Easy to use thanks to Livmak Interface Technical Specifications TROX 3Axis 65 CNC Max Bending Capacity Ø65 mm x 2 mm Min / Max Mold Size 90/250 mm Material Process Length 4000 mm Machine Sizes 5500x1750x1750 mm Total Engine Power 15 Hp Machine weight 3 Tons
